Z-Mike Pro

Z-Mike Pro

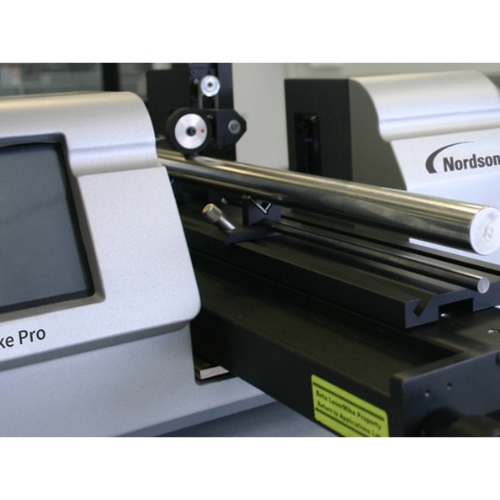

Z-Mike Pro: Unmatched Precision for Critical Off-Line Part Measurement

The Z-Mike Pro laser measurement system sets the benchmark for off-line precision, trusted by over 15,000 global manufacturers to achieve the highest accuracy and repeatability for their most critical parts. Its advanced non-contact laser technology provides unrivalled measurement performance.

What truly sets the Z-Mike Pro apart is its patented optical design and sophisticated electronics, ensuring unequalled accuracy and exceptional repeatability even in challenging environments. With integrated auto-calibration, this advanced technology self-adjusts for ambient temperatures and external light, maintaining precision across its entire measurement range. This non-contact system excels at precisely measuring soft, delicate, brittle, hot, and even radioactive parts with incredible sub-micron tolerances (less than 1 micron).

Enquire Now

"*" indicates required fields

Name*
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

Z-MIKE PRO BROCHURE
  • Patented optical design and electronics provide unequalled accuracy and exceptional repeatability.
  • No need for recalibration — auto calibration adjusts as necessary.
  • Measurement precision not sensitive to surface type (gloss, matt, colour) or external light.
  • Non-contact technique eliminates operator-influenced errors.
  • Little to no adjustment is required to measure a wide range of part sizes or dimensions.
  • Rugged cast housing seals protect against dust and moisture for use in factory floor environments.
  • Large, touch-screen display provides a simple user interface.
  • Multiple product types can be stored and recalled at the touch of a button.



Software Benefits

  • Data Display — the Z-Mike Pro has advanced display capabilities, allowing you to access measurement data and general information such as the presence or absence of error conditions.
  • Magnified Display — measurements can be magnified for visibility from afar.
  • Tolerance Limits — categorise parts with six thresholds: low, reject, low warning, in-tolerance, high warning and high reject.
  • Library Selection — use the library function to store and recall how part measurements are taken, therefore shortening set-up times for various parts and applications.

Made to Measure Support Every Step of the Way

Your success with Z-Mike Pro is our priority, and we offer dedicated support from your initial enquiry through to full implementation. We’ll connect you with a specialized product expert who will serve as your consistent point of contact, guiding you to the optimal measurement solution for your specific application. This seamless partnership ensures successful integration and ongoing confidence. To discover how Control Metrix can elevate your precision measurement capabilities, arrange a call with our specialist today. Call +44 (0)1823 761309 today.



  • Fuel injectors
  • Glass tubes
  • Valves
  • Cutting tools
  • Plug and pin gauge calibration
  • Pistons
  • Rubber rollers
  • Motor shafts, crankshafts and camshafts
  • Medical devices.

Key Specifications



Z-Mike Pro 25mm Z-Mike Pro 50mm
Measurement
Range 0.1 to 25mm 0.254 – 50mm
Repeatability ±0.13µm ±0.25µm
Accuracy ±0.5µm ±0.76µm
Measurement Area Depth of Field ±0.75 x 25mm ±1.5 x 50mm
Laser Beam Velocity 50m/sec 100m/sec
Temperature Coefficient <0.2µm/°C <0.2µm/°C
Calibration Factory Calibrated
General
Operating Temperature 7°C to 36°C at <90% relative humidity
Storage Temperature -20°C to 60°C
Dimensions (HxWxD) 254 x 635 x 228mm
Weight 19.7kg
LaserSource HeNe gas laser; <1 mW output
Display 177.8mm capacitive touch
Power Requirements 100 to 240 volts AC (+5% to -10%), 50/60 Hz(±2 Hz) 100 watts total power
Product Warranty 2 years
