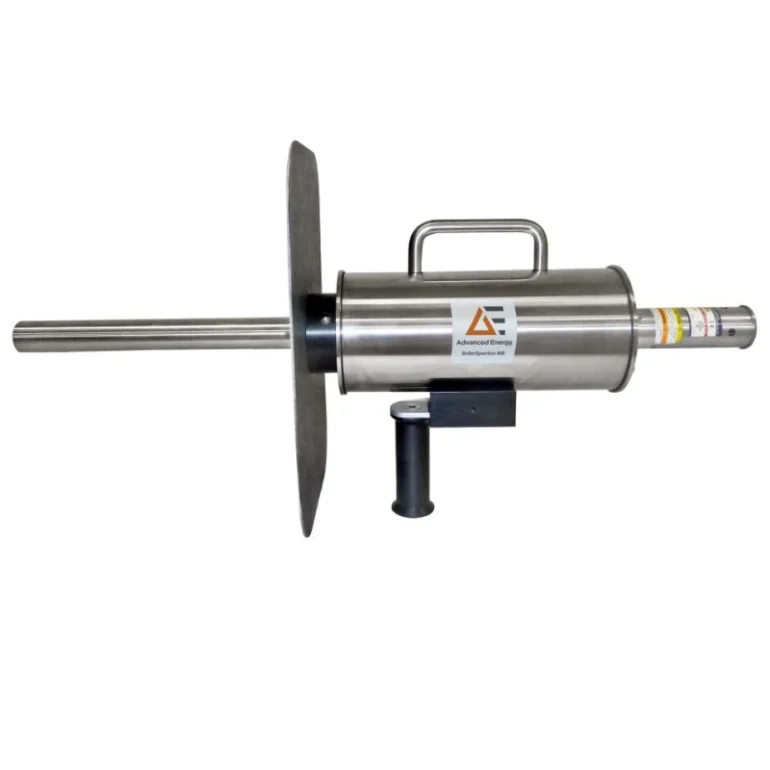

Through the use of special mid-wave, infrared detectors, the BoilerSpection MB mobile imaging boiler inspection system provides the clearest and most stable through-flame images in furnaces, kilns, boilers and incinerators.
"*" indicates required fields
The BoilerSpection MB quickly and accurately identifies process abnormalities for optimal combustion and heat transference. This allows cleaning operations to be directed, fuel and airflow to be regulated, emissions and fuel consumption reduced, and safety improved. It includes a standard video (BNC) output to use with legacy video equipment.
| Temperature Range | 500 to 1600°C |
| Filter | ~3.9 µm narrow bandpass filter |
| Image Update Rate | 30 Hz / 9 Hz |
| Detector | 320 x 240 uncooled focal plane array VOx microbolometer |
| Focus | Manual |
| Field of View (FOV) | 50° H x 38° V |
| Optical Protection | Sapphire window tip with air purge shield |
| Optic Diameter | 42 mm |
| Lense Lengths | 18 in (“A” Dimension 15.75 in [400 mm]) 24 in (“A” Dimension 22.50 in [572 mm]) 36 in (“A” Dimension 34.10 in [866 mm]) |
| Lense Construction | Stainless steel borescope optics with ZnS optical elements (can be operated without air for brief inspections) |
| Video Out | NTSC / PAL |
| Camera Connection | Power and Ethernet connection cables |
| Camera Weight | 13.5 kg |
| Housing | Stainless steel enclosure with vortex air cooling (air is only required for longterm monitoring) Removable radiation shield |
| Power Input | Power supply included, the input is universal AC (Battery pack optional) |
| Electrical Cabinets | All cabinets/panels are NEMA 4/IP65 |
| Air Supply | 30 to 50 m3/hr |
| Maximum Furnace Temperate at the Point of Lens Insertion | Air-cooled 1,500°C / Water-cooled 1,927°C |
