CM710e

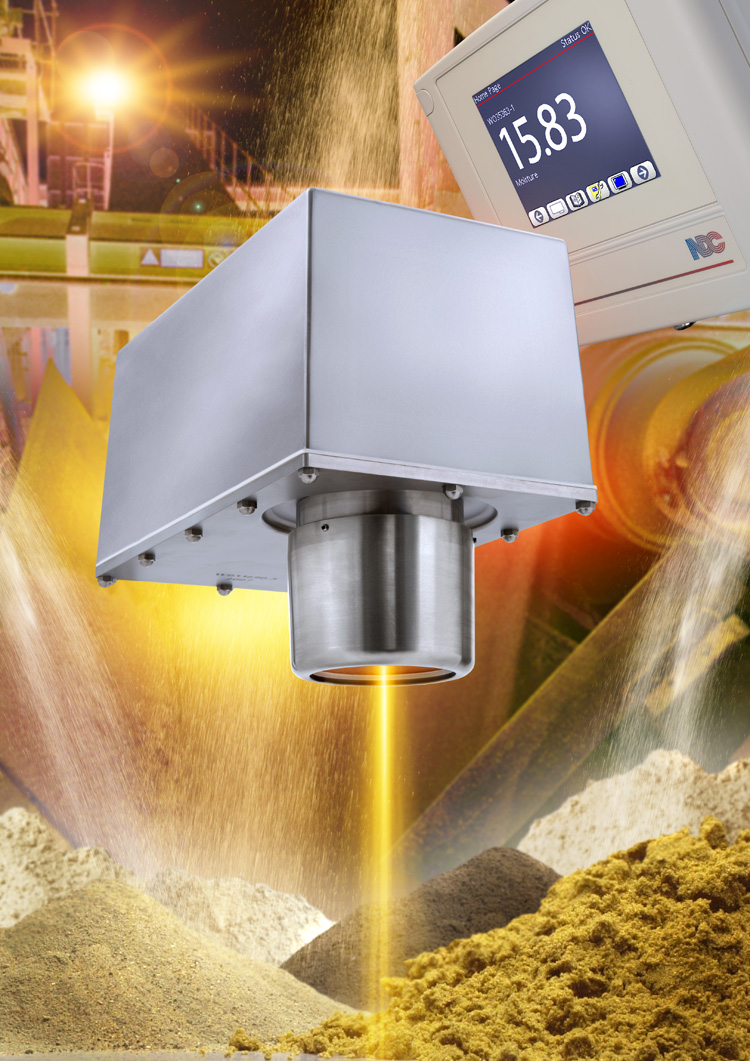

CM710e NIR On-Line Moisture Measurement Sensor

NIR On-Line Moisture Measurement Sensor

The CM710e has been discontinued. Take a look at the latest Series 9 Moisture Gauge for a better alternative



The CM710e model is an online moisture sensor specifically designed to meet the needs of companies manufacturing powders, coarse or fine particles, concentrates, slurries, pastes, flakes, granules and other similar products. Using near infrared (NIR) non-contact principle for online moisture measurement it is suitable for many types of continuous processes and will provide real-time moisture measurements that can be used to control the process, monitor product quality and warn operators if the process is moving out of specification, thereby increasing yield and improving quality. When using this online moisture sensor, efficiency improvement can result in substantial cost reductions and investment payback in a matter of months.

Enquire Now

"*" indicates required fields

Name*
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

View Brochure

Operating principle

The CM710e online moisture measurement sensor works on the principle that moisture absorbs a specific wavelength of light. By pulsing light at a different known wavelength the CM710e online moisture sensor compares the absorption rate to an internal reference thus making it possible to determine exactly by how much each wavelength is being absorbed. Using high-speed signal processing the algorithm converts the infrared signals into an output that is proportional to moisture content by means calibration curve. The measurement in unaffected by changes in process conditions such as particle size, product height temperature, ambient lighting and humidity changes.

Applications

  • Bio fuels
  • Brick manufacture
  • Ceramics
  • Wood-based panels
  • Explosives
  • Fibres & Polymers
  • Minerals
  • Ore Extraction and mining
  • Pre-cast concrete
  • Sinter mix

NDC Technologies experience

NDC Technologies have nearly 40 years experience in applying NIR technology to their in-process measurement systems. This experience is engineered into every gauge model to ensure that the user can easily employ the gauges without specialist knowledge yet will benefit from accurate and dependable measurement from day one.

Stable dependable measurement

Providing stable measurement is essential in helping our customers improve their process control and maximise efficiency.

Insensitive to ambient humidity and temperature

Designed for purpose and suitable for continuous in-line measurement in harsh industrial applications

Fast measurement rate

Fast measurement rate enables fast process variations to be accurately monitored ensuring the best possible process control.

Network ready

Instaling single or multiple gauges is very simple with OWS operator level workstation and HMI for supervisory access for upto 16 networked CM710e gauges

Low cost of ownership

Long term stability combined with industry best performance, low installation costs and no routine maintenance requirements guarantee the lowest cost of ownership over MM710e’s many years of service.
